Written by Alexander A. Ganin, Maksim Kitsak, Dayton Marchese, Jeffrey M. Keisler, Thomas Seager and Igor Linkov
Urban transportation systems are vulnerable to congestion, accidents, weather, special events, and other costly delays. Whereas typical policy responses prioritize reduction of delays under normal conditions to improve the efficiency of urban road systems, analytic support for investments that improve resilience (defined as system recovery from additional disruptions) is still scarce. In this effort, we represent paved roads as a transportation network by mapping intersections to nodes and road segments between the intersections to links. We built road networks for 40 of the urban areas defined by the U.S. Census Bureau. We developed and calibrated a model to evaluate traffic delays using link loads. The loads may be regarded as traffic-based centrality measures, estimating the number of individuals using corresponding road segments. Efficiency was estimated as the average annual delay per peakperiod auto commuter, and modeled results were found to be close to observed data, with the notable exception of New York City. Resilience was estimated as the change in efficiency resulting from roadway disruptions and was found to vary between cities, with increased delays due to a 5% random loss of road linkages ranging from 9.5% in Los Angeles to 56.0% in San Francisco. The results demonstrate that many urban road systems that operate inefficiently under normal conditions are nevertheless resilient to disruption, whereas some more efficient cities are more fragile. The implication is that resilience, not just efficiency, should be considered explicitly in roadway project selection and justify investment opportunities related to disaster and other disruptions.
Introduction
Existing roadway design standards emphasize the efficient movement of vehicles through a transportation network. Efficiency in this context may include identification of the shortest or fastest route, or the route that minimizes congestion. It is the primary criterion on which road networks are modeled and design alternatives are considered. The Texas A&M Transportation Institute defines and reports traffic delay in urban areas as the annual delay per auto commuter. Other studies define efficiency as delay for the individual driver in terms of time spent moving or stopped, or mean travel time between all origin-destination pairs in the network. However, as the experience of any motorist in large American cities can attest, conditions beyond the scope of the roadway design, including congestion, accidents, bad weather, construction, and special events (for example, a marathon race), can cause costly delays and frustrating inefficiencies that result in fuel waste, infrastructure deterioration, and increased pollution. Evaluating road networks based only on efficiency under normal operating conditions results in little to no information about how the system performs under suboptimal or disrupted conditions.
Infrastructure systems that exhibit adaptive response to stress are typically characterized as resilient. Given the essential role of transportation in emergency response, provision of essential services, and economic well-being, the resilience of roadway networks has received increasing policy attention. Nonetheless, scholars have yet to converge on a shared understanding of resilience suitable to guide design, operation, and reconstruction of roadway networks. Although resilience in infrastructure systems is characterized as a multidimensional concept, in many engineering and civil infrastructure implementations, resilience is defined as the ability of a system to prepare for, absorb, recover from, and adapt to disturbances. Specific to transportation, resilience has been defined as “the ability of the system to maintain its demonstrated level of service or to restore itself to that level of service in a specified timeframe”. Others describe transportation resilience as simply the ability of a system to minimize operational loss or use the term synonymously with robustness, redundancy, reliability, or vulnerability.
Current efforts in transportation resilience research have focused on framework development and quantification methods. These efforts include the specification of resilience indicators, such as total traffic delay, economic loss, post-disaster maximum flow, and autonomous system components. Practical concerns with this type of resilience evaluation are that it relies on uncertain performance data and often omits indicators that are unquantifiable. Other resilience approaches apply traffic network modeling to identify locations for critical buildings (for example, hospitals and fire stations), minimize trip distance for individual passengers, and minimize travel time across the system. One drawback of existing network resilience methods is that they are data-intensive, often requiring limited information about resources for unusual road system repair or network behavior following a disruptive event. Moreover, existing resilience quantification approaches lack calibration and testing across a range of transportation systems. Because many disruptive events, and their associated consequences, are difficult to predict, resilient road systems must be characterized and evaluated by the capacity to adapt to a variety of different stress scenarios. Partly because of these obstacles, joint consideration of efficiency and resilience has yet to be implemented for transportation networks.
Here, we study the interconnections between resilience and efficiency among road transportation networks in 40 major U.S. cities. We develop an urban roadway efficiency model, calibrate it on the basis of the observed data of annual delay per peak-period auto commuter, and apply the model to calculate efficiency in 40 cities.
Then, we model traffic response to random roadway disruptions and recalculate expected delays to determine the sensitivity of each city to loss of roadway linkages. The results may reveal important considerations for assessing proposals for improvement of roadway infrastructure that maintain efficiency under stress conditions.
Fig. 1. Definition of urban areas and assignment of nodes’ population. (A) Boston, MA-NH-RI urban area as defined by the U.S. Census Bureau shapefiles (gray background). To simplify the model and the algorithms calculating the distance from network nodes to the city boundary, we approximate each of the urban areas shapefiles with a coarse manually drawn polygon (pink outline). (B) Assignment of the number of people departing from each of the network nodes. Population distribution (color polygons; red corresponds to higher population density), Voronoi polygons (black outline), and network nodes (dots) in Downtown Boston.

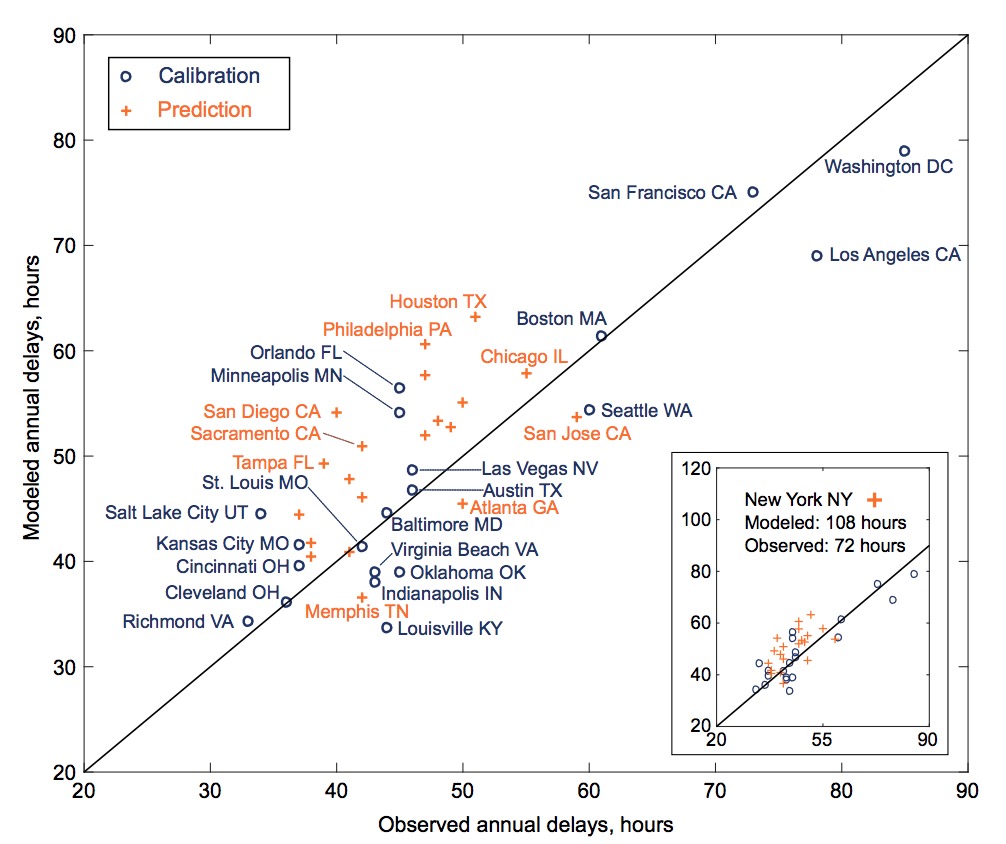

Fig. 3. Modeled and observed delays in 40 urban areas. Pearson correlation coefficients and P values between observed and modeled delays are (0.91, 2.17 × 10−8 ) for the 20 cities used to calibrate the model and (0.63, 3.00 × 10−3 ) for the 20 cities used to validate the model. Observed delays were taken from the Texas A&M Transportation Institute Urban Mobility Scorecard.
Discussion
The disturbances affecting the road infrastructure are often complex, and their impact on the structure and function of roadway systems may be unknown. These disturbances might be natural and irregular, such as distributed road closures caused by an earthquake or homogeneous vehicle slowing down because of a snowstorm. The disturbances might also be anthropogenic and intentional, such as a street fair or marathon race. Whatever the disturbance, the results of this analysis allow several meaningful inferences to be made that may have important implications for highway transportation policy. The first is that resilience and efficiency represent different aspects related to the nature of transportation systems; they are not correlated and should be considered jointly as complementary characteristics of roadway networks.
Second, there are characteristic differences in the resilience of different urban areas, and these differences are persistent at mild, medium, or widespread levels of stress (Fig. 5). Except for San Francisco, CA, which is the most fragile of all cities represented in Fig. 5 at stress levels r < 20% but then surpassed by Boston, MA and Washington, DC, the rank ordering of urban area resilience is insensitive to stress levels. That is, cities that exhibit relatively low resilience under mild stress are the same cities that exhibit low levels of resilience (relative to peers) under widespread roadway impairment. This suggests that the characteristics that impart resilience (such as availability or alternate routes through redundancy of links) are protective against both the intermittent outages caused by occasional car crashes and those caused by snow and ice storms. For cities without resilience, a widespread hazard such as snow may lead to a cascade of conditions (for example, crashes) that rapidly deteriorate into gridlock. This was exactly the case for Washington, DC 20 January 2016 under only 2.5 × 10−2 m or 2.5 cm of snow, and for Atlanta, GA 2 years earlier, which experienced 5.1 × 10−2 m or 5.1 cm of snow in the middle of the day that resulted in traffic jams that took days to disentangle. Whereas popular explanations of these traffic catastrophes focus on the failure of roadway managers to prepare plows and emergency response equipment, Fig. 5 suggests that cities with similar climates (Memphis, TN and Richmond, VA) are less likely to be affected, regardless of the availability of plow or sand trucks.
The third inference follows from Fig. 6, which suggests that urban areas that make capital investments to reduce traffic delays under normal operating conditions may nevertheless be vulnerable to traffic delays under mild stress conditions. Because these stressors are inevitable, whether from crashes, construction, special events, extreme weather, equipment malfunctions, or even deliberate attack, investment strategies that prioritize reduction of normal operating delays may have the unintended consequence of exacerbating tail risks— that is, the risk of worse catastrophe under unlikely but possible conditions.
Finally, the exceptional position of New York City in Fig. 3 calls attention to the fact that substitutes for roadway transportation are available in many cities and have an important role to play in relieving traffic congestion. According to the Texas A&M Institute, public transit reduces delays per peak-period auto commuter in the New York urban area by 63 hours, in Chicago by 23 hours, and by less than 20 hours in other urban areas. Because our model considers only roadway transit, and New York City contains a myriad of non-road-based options to avoid roadway congestion, it is unlikely that our model can provide informative results for the New York urban area.
Although interest has increased in policies that enhance roadway resilience, few analytic tools are available to guide new investments in achieving resilience goals. It is widely understood that roadway infrastructure is expensive, both in acquiring land for rights-of-way and in construction of improvements, and thus, decisions regarding alignment, crossing, and access made over a period of decades may have long-lasting consequences that are observable in traffic data today. Consequently, urban areas exhibit different unintentional traffic characteristics, including delays under normal and random stress conditions. Investments motivated exclusively by expected efficiencies under normal operating conditions are unreliable safeguards against loss of efficiency under stress conditions. Therefore, new analytic tools are required that allow designers to assess the adaptive capacity of roadway infrastructure and assess the potential of new investments to provide enhanced resilience. The adaptive network-based model described herein is one such approach.
Download full version (PDF): Resilience and efficiency in transportation networks
